Selectronic Capacitors

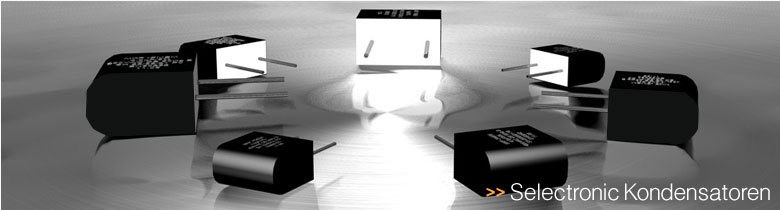

Capacitors in plastic casing, synthetic resin sealing, radial connections
Self healing metallised plastic film capacitors
Connections: tin-plated copper wire, stranded wire, insulated wire

MKT-HME   Dielectric: Polyester, Capacitance: 0,1µF up to 80µF

Nominal Voltage: 160V DC / 70V AC to 1000V DC / 250V AC

Technical Details

MKP-PME   Dielectric: Polypropylene, Capacitance: 0,047µF to 15µF

Voltage: 400V AC / 630V DC to 600V AC / 1000V DC

Technical Details

MKP-PMEM   Dielectric: Polypropylene, Capacitance: 0,15µF up to 15µF
2,0µF to 5µF with VDE-mark

Nominal Voltage: 250V AC / 400V DC to 600V AC / 100V DC

Technical Details

MKP-PME/RC   RC-Combination
Dielectric: Polypropylen, Capacitance: 0,1µF to 1,0µF

Voltage: 160V AC / 250V DC to 250V AC / 630V DC

Technical Details
